Thermo Chiller (TCU)

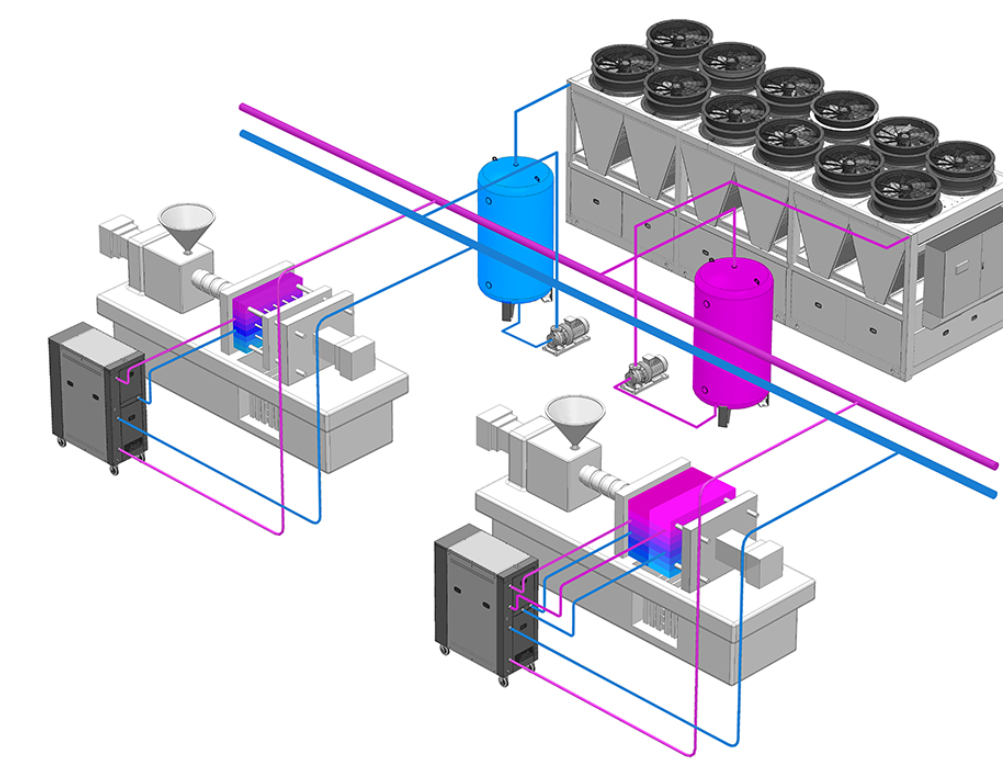

Environmentally-friendly injection moulding solution: Water-cooled thermal chiller featuring integrated free cooling and options for single or dual zones.

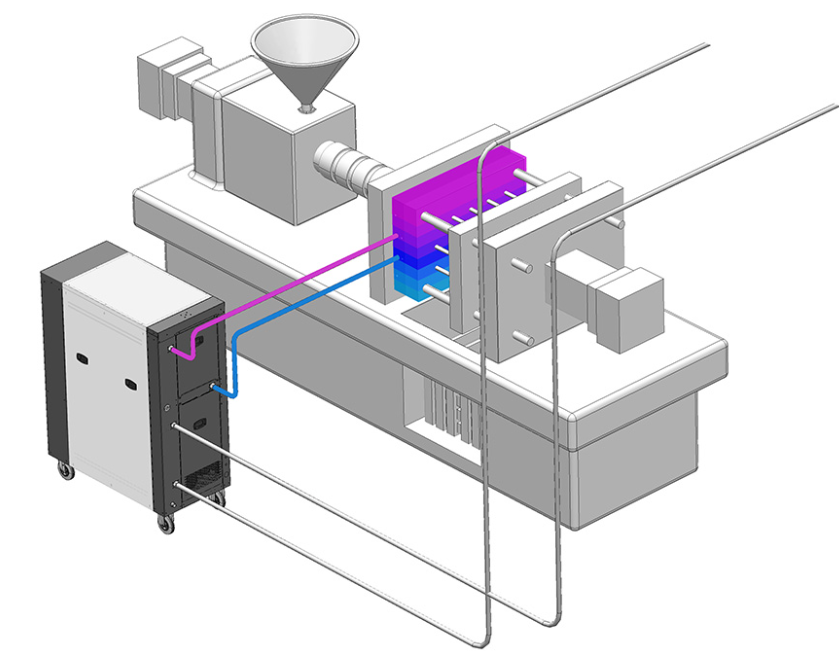

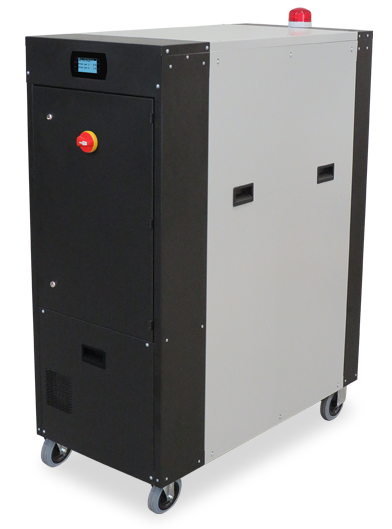

Our TST series Thermo-chiller provides precise temperature control for moulds, enhancing cooling cycle efficiency. Our TCU utilises the eco-friendly refrigerant gas R513A and are designed with integrated free cooling to maximise energy conservation. Configuration options include single or dual zones, along with P4 (standard) or P6 (optional) high-flow pumps. Temperature regulation for each zone is achieved through a 3-way valve and a heating resistor.

The TST series of TCU is available in 8 sizes, ranging from TST8 to TST60, offering cooling capacities from 8 to 60 kW. The operating range with pure water extends from 5°C to 90°C. It ensures precise control of outlet water temperature with an accuracy of +/- 1.5°c.

Key features include:

  • Use of the ecological low GWP R513A refrigerant gas.

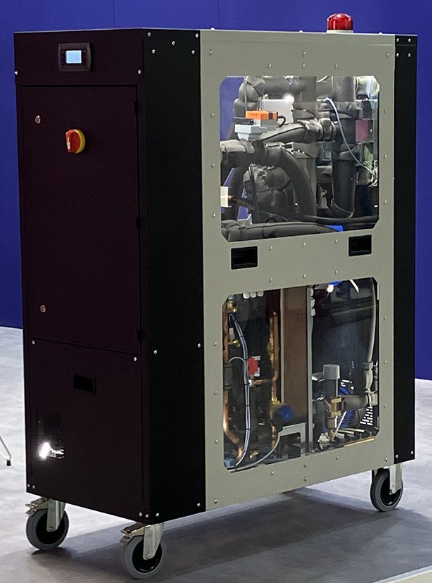

  • Equipped with a single hermetic compressor.
  • Features a stainless steel brazed plate evaporator and condenser.
  • Utilises non-ferrous water circuit materials such as stainless steel, EPDM rubber, copper, and brass.
  • Incorporates condensing pressure control through a pressostatic valve.
  • Includes water pressure transducers on the process side.
  • Fitted with high and low refrigerant pressure switches.
  • Utilizes an electronic hot gas bypass valve.
  • Features an automatic water filling system.
  • Equipped with an insulated stainless steel pressurized water tank.
  • Includes an expansion vessel.
  • Incorporates a 3-way mixing water valve with an integrated actuator for precise control of the outlet temperature.
  • Manages automatic Free Cooling.
  • Equipped with an integrated microprocessor electronic controller.
  • Offers the option of a single or dual thermoregulated zone.
  • Supports RS485 MODBUS RTU protocol communication.
  • Built with a galvanized steel powder-coated frame and panels.
  • Available in 3/400V/50Hz or 3/460V/60Hz configurations.
  • Features an IP40 rated electrical control panel.
  • Includes wheels for ease of mobility.
