ND, NDS, NDZ & NCRS Series – Swan Neck and Angled Belt Conveyors

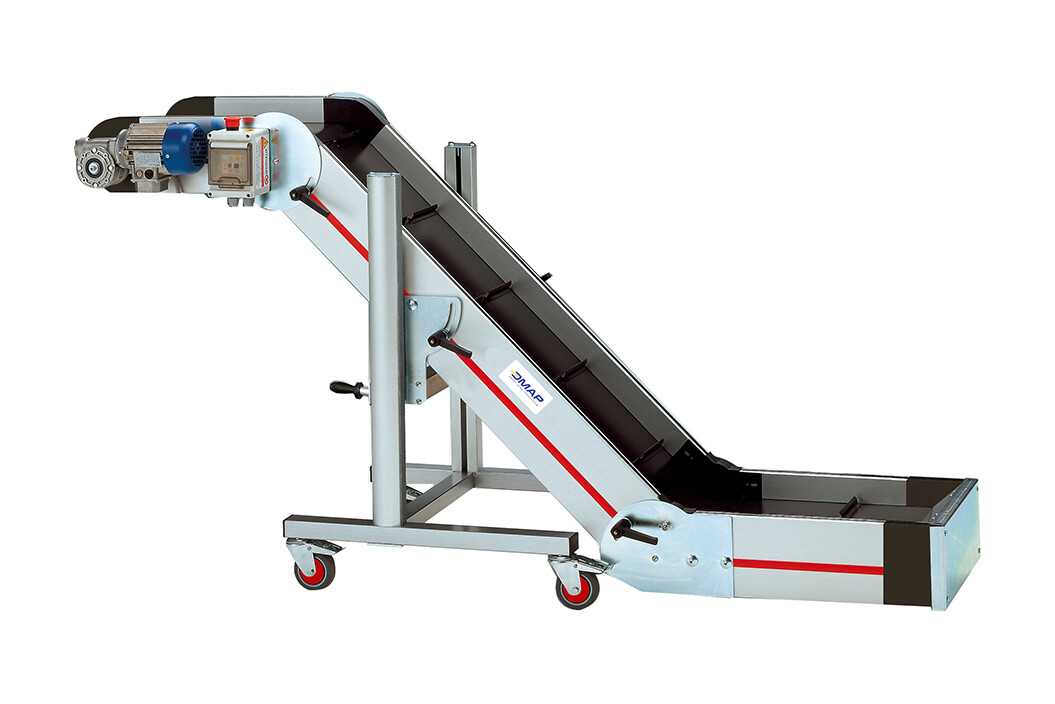

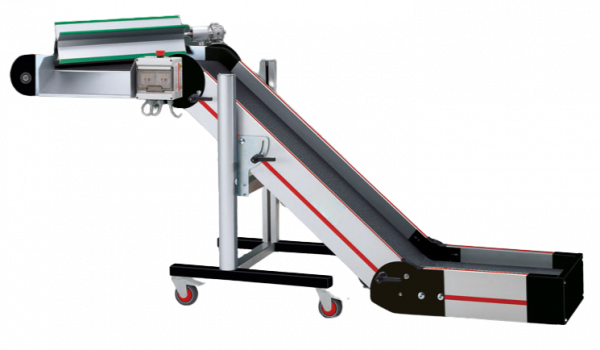

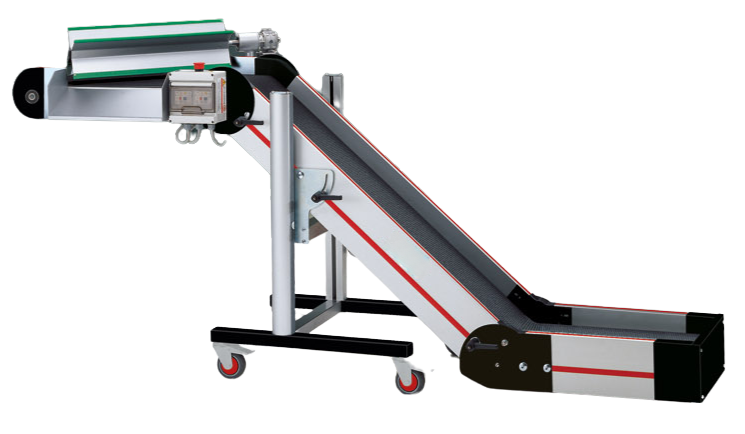

The New Omap ND, NDS, NDZ, and NCRS Series conveyors are designed to optimise material handling, offering precision transport for moulded and blown parts. Constructed with a lightweight yet durable aluminium frame, these conveyors provide efficient and adaptable solutions for various industrial applications. The NDS and NDZ Series feature a swan neck (double-angled) design, while the ND Series has fixed angles for a structured setup. The NCRS Series includes an articulated upper section for flexible part handling.
Key Features:
- Swan neck (NDS, NDZ) or fixed-angled (ND) conveyor designs for tailored material flow.
- Adjustable height, slope, and angles for optimised positioning (NDS & NCRS only).
- Rigid aluminium structure with swivelling wheels and brakes for easy movement and stability.
- High-grip bulged PUR belt fabric (NDS & NDZ) for secure part transport.
- Standard smooth PUR belt with 30 mm height flights at a 500 mm pitch (NCRS).
- 3 m/min standard belt speed, with custom speed options available.
- Robust 180 W, 3-phase motor (400 V) ensuring reliability.
- Designed and manufactured to CE Standards, guaranteeing compliance and safety.
The New Omap ND, NDS, NDZ, and NCRS Series provide flexible and high-performance solutions for material transport. Whether you need the versatility of the NDS and NCRS Series or the structured design of the ND and NDZ Series, these conveyors ensure seamless integration, enhanced efficiency, and improved workflow in your production process.
Customisation Options:
All models can be tailored with additional features, including:
- Electronic control panels with robot signal integration for automated operation.
- Belt speed options from 1.5 to 12 m/min, with manual control up to 20 m/min.
- Metal plate detection systems for enhanced quality assurance.
- Various separator types including blade, spiral, single-roller, and double-roller separators (NDS includes a motor-driven blade separator).
- Custom conveyor dimensions to fit specific operational needs.
- Specialised belt fabrics, including food-grade white belts and heat-resistant reinforced options.
